Specifications And Geometry

A Seat Height 29.9'' / 75.9 cm
B Handlebar Width 29.1'' / 73.9 cm
C Front-fork Length 23.6'' / 59.9 cm
D Overall Height 37.8'' / 96.0 cm
E Wheelbase 43.3'' / 110.0 cm
F Overall Length 62.2'' / 158.0 cm
Motor 3000W Peak / 1500W Rated
Torque 147 N·m
Top Speed 37 MPH
Battery 48V 23Ah Lithium Battery
Max Range Up to 40 Miles
Charging Time Approx. 8 Hours
Max Load 265 lbs
Recommended Age 14–50
Recommended Height 4'7"–5'11"
Seat Height 31.5 in
Bike Weight 123 lbs
Frame Carbon Steel Frame
Suspension Hydraulic Front Fork + Adjustable Rear Nitrogen Shock

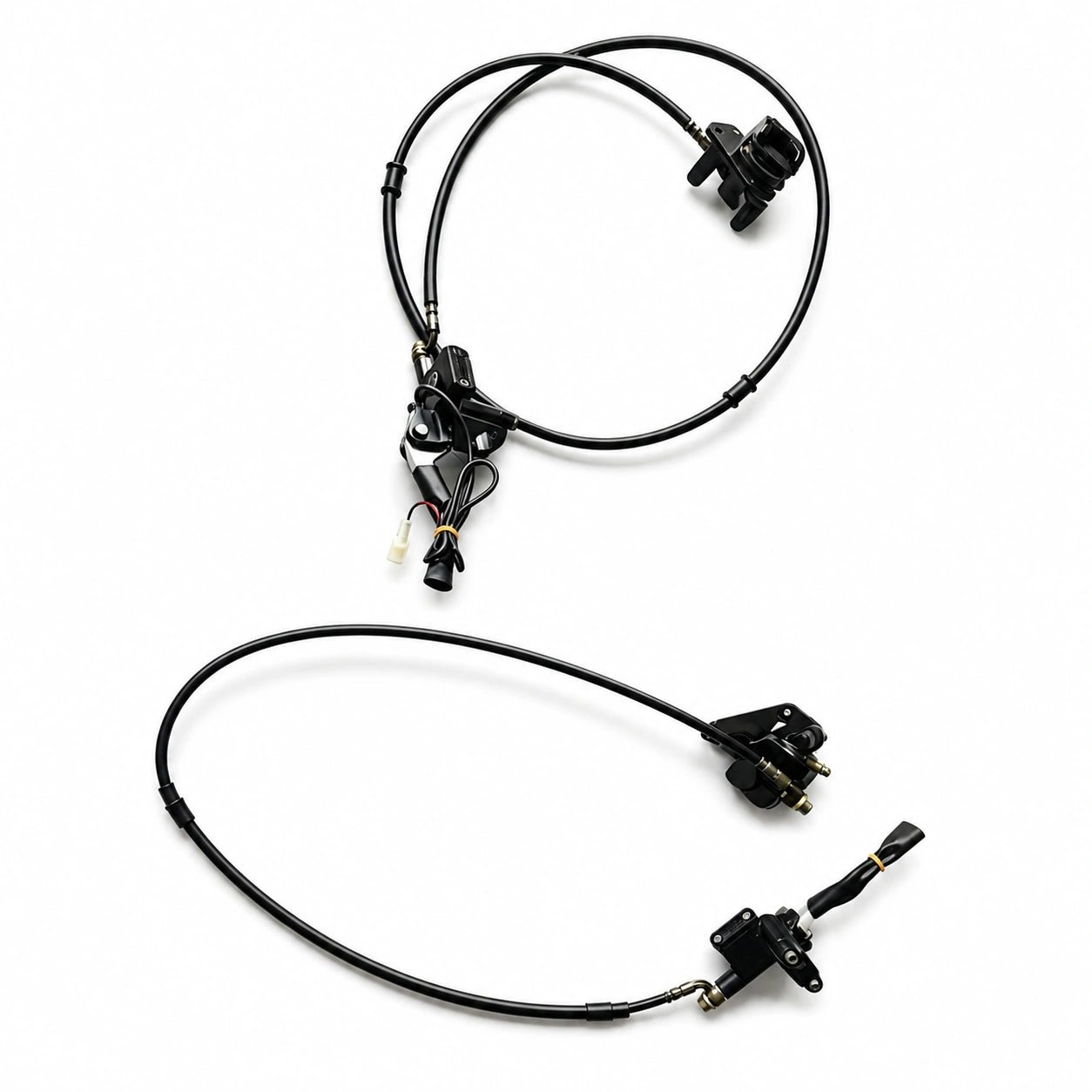

Brakes Hydraulic Disc Brakes
Tires 14" Front / 12" Rear
Climbing Ability 30°
Water Resistance IPX5
Certification UL2272 Certified
A EMORTAL ROGUE MX-01 x1
B User Manual x1
C Battery Charger x1
D Foot Pegs x2
E Front Wheel x1
F Front Fender x1
G Front Light x1
H Tool Kit x1
I Battery Keys x2
J Nitrogen Air Shock Absorber x1
K Front Panel x1
